Soap Dispenser PG-SD-001P
Automatic soap dispenser also named as sensor activated soap dispenser allow touch-free delivery eliminating cross-contamination. This wall-mounted automatic soap dispenser PG-SD-001P is easy to setup and maintenance, and you can fill it with liquid soap, shampoo, detergent and disinfectant.
Feature
- Non-contact with your hands and dispense automatically, which provides you a sanitary and touch-free experience.
- Easy to install. Use the wall mounting screws or adhesive punch-free sticker.
- Support liquid soap, shampoo, detergent and disinfectant.
- 600ml large tank last for a long time.

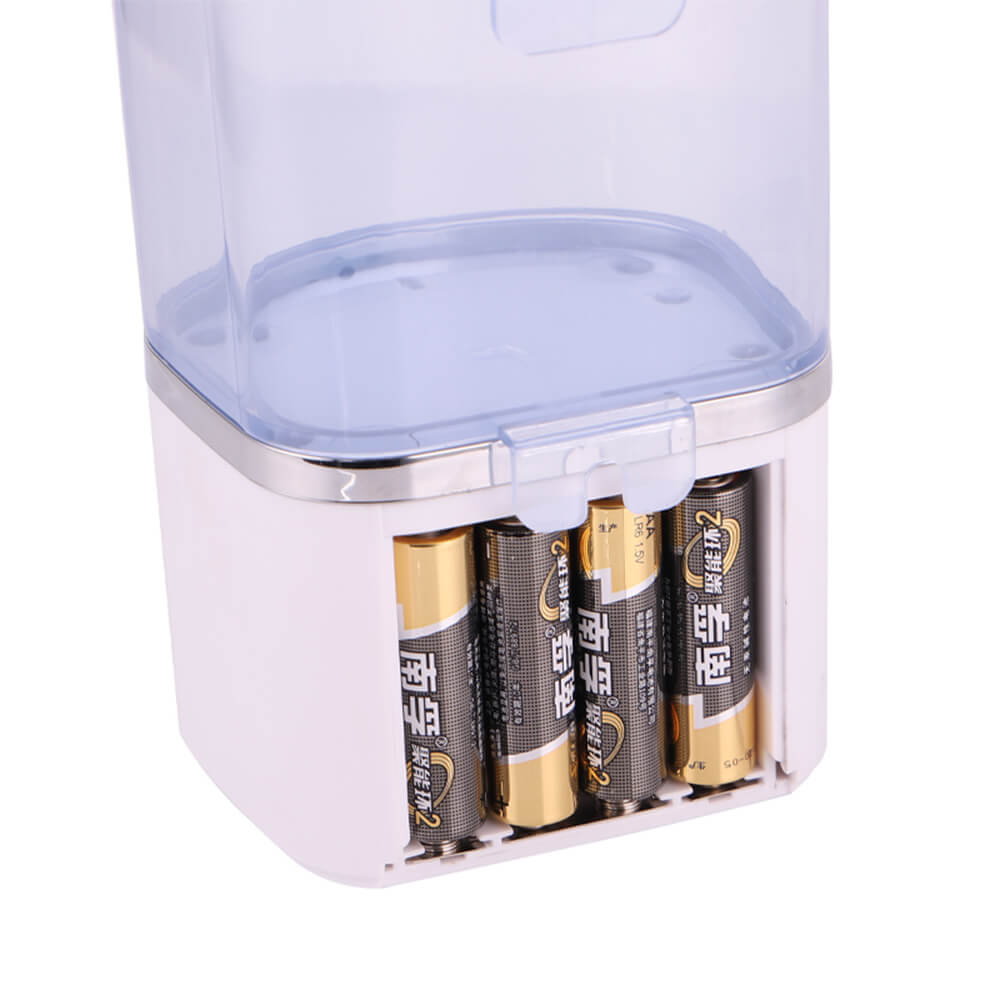

- Low power consumption. 4 * AAA battery (not include) can standby for a long time.
- Easy to use. Switch the device on by press the red button on the bottom of the device and the LED indicate Red, the default volume is first level. Long press the red button to turn off the device, LED indicate red. There are three levels of dispensation volume and you can press the red button to adjust.
- Easy to refill. Almost transparent tank easy for you to check the left volume. Use the key to open the cover of the device, and refill the liquid soap or disinfectant.
- Suitable for household, restaurant, school, hotel, factory, washroom, restroom, supermarket, etc.

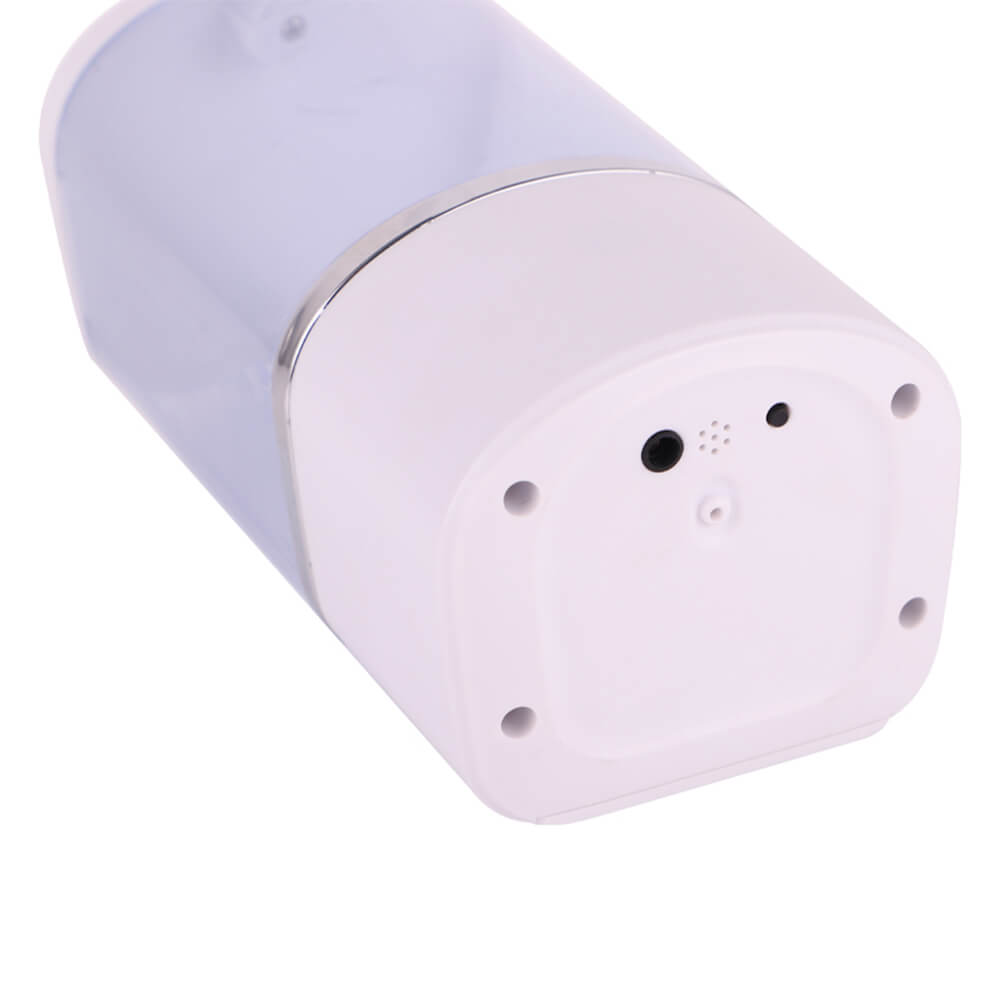

Push-button Direction
Mechanical Dimensions
Parameter
| Model No. | Automatic Soap Dispenser PG-SD-001P |
| Input Voltage | DC 6V |
| Power Consumption | 1.8W @ 300mA |
| Standby Current | 300uA |
| Material of Disinfection Sprayer | ABS |
| Finishing Color | White Cover + Light Blue Tank |
| Mechanical Dimension | 95mm (L)*95mm(W)*190mm(H) |
| Tank Capacity | 600ml |
| Support Liquid | Liquid Soap/Shampoo/Detergent/Disinfectant |
| Infrared Sensing Distance | ≤12cm |
| Volume of Each Dispensation | 1ml |
| Dispensation Level | 3 Levels |
| Power Supply | 4 * AAA Battery |
| Battery | Not Include |
| Accessories | Wall Mounting Screws and Mouts, key, User Manual |
| Weight | 320g |
Application
This soap dispenser can be used for household, restaurant, school, hotel, factory, washroom, restroom, supermarket, etc.
Packing Information
| Quantity in Box | 1PCS/Box |
| Gross Weight in Box | 400g |
| Packing Box Size | 115mm (L)*105mm(W)*130mm(H) |
| Quantity in Carton | 40PCS/Carton |
| Net Weight in Carton | 12.80kg/Carton |
| Gross weight in Carton | 16.3kg/Carton |
| Carton Size | 55cm(L)*45cm(W)*41cm(H) |
The following picture show the packing details of the automatic soap dispenser: the color box and all the accessories inside.
